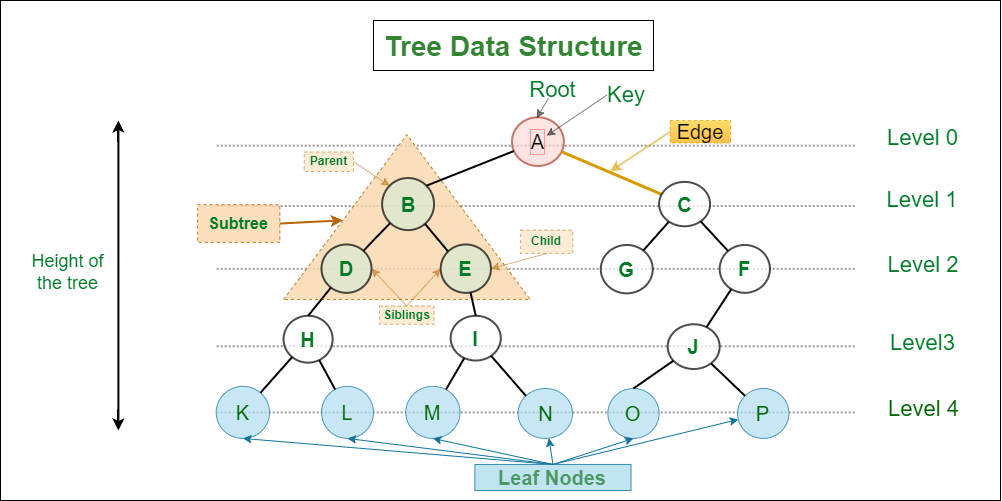

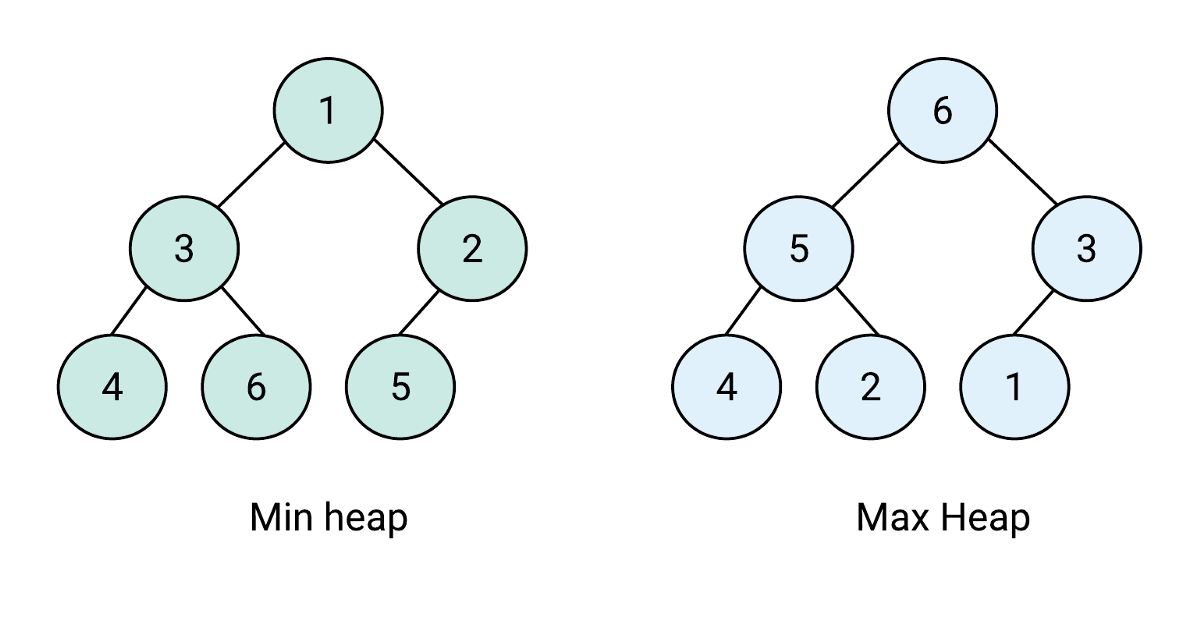

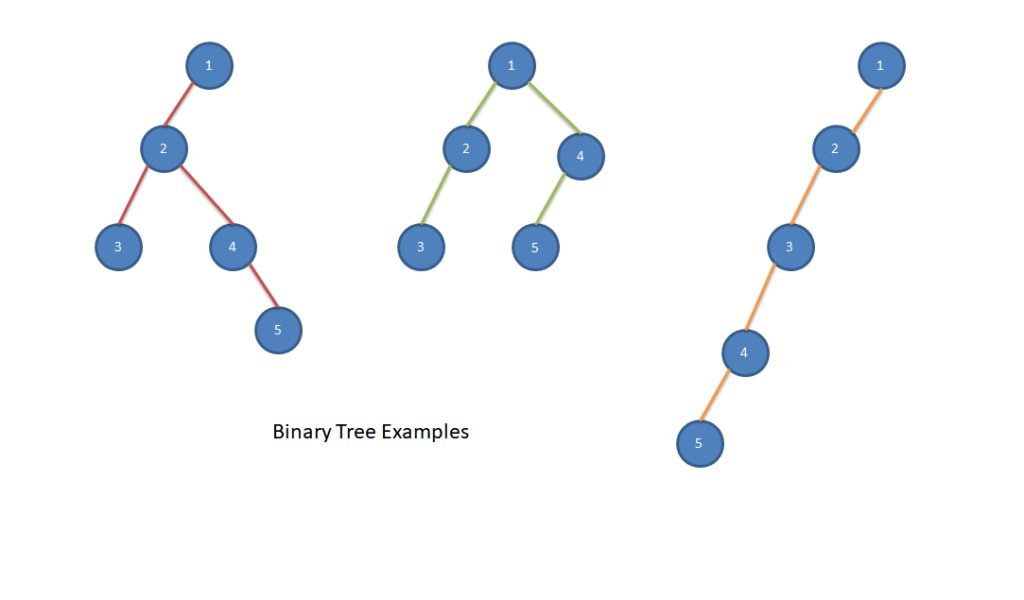

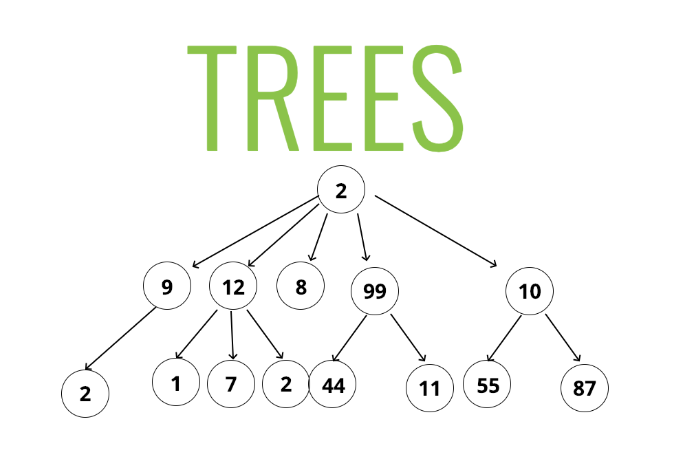

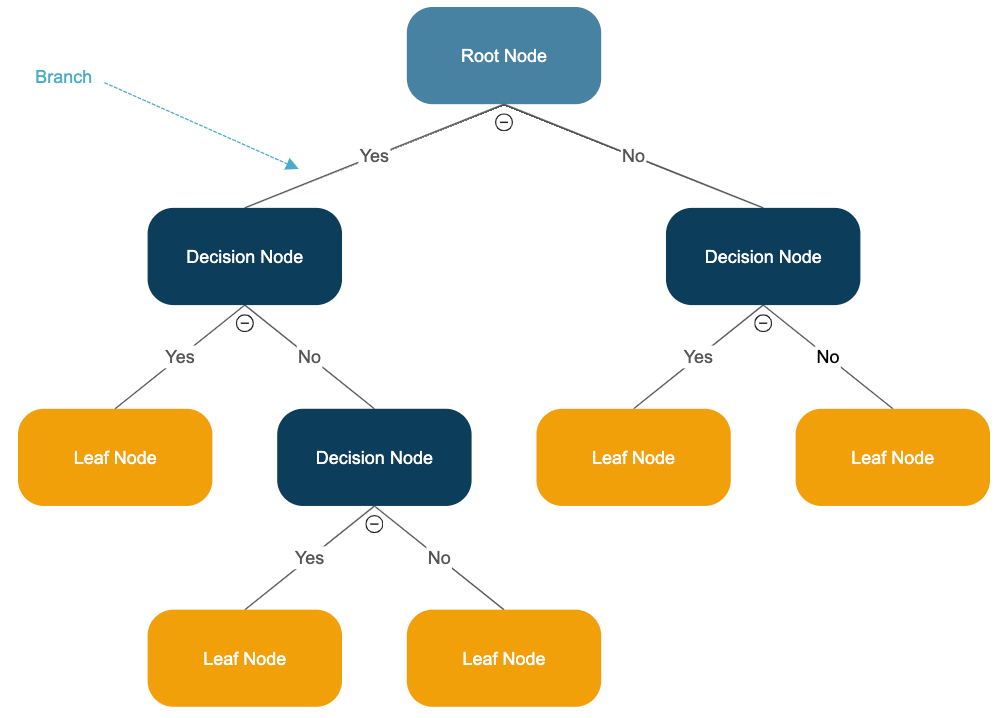

# Week 10: Trees and Binary Trees #### Objectives 1. Understand Tree fundamentals and concepts 2. Understand binary trees and different types of binary trees 3. Explore basic operations on binary trees 4. Introduce heap data structures and understand their properties 5. Conceptually understand priority queues and their relationship to heaps --- ## Introduction to Trees - Hierarchical data structure - Nodes connected by edges - One root node - No cycles allowed - Each node can have multiple children  --- ## Why Trees? - Natural hierarchical representation - Efficient searching and sorting - File systems - Organization charts - Family trees - XML/HTML DOM - AI Decision Trees --- ## Real-world Examples |  |  | |--------------------------------|-----------------------------------| |  |  | --- ## Basic Tree Terminology  ~.~ --- ## What is a Binary Tree? - Special tree where each node has 0, or 1 or at most 2 children - Children designated as left and right - More structured than general trees  --- ## Types of Binary Trees 1. Complete Binary Tree - All levels filled except last - Last level filled left to right ``` A / \ B C / \ D E ``` 2. Full Binary Tree - Each node has 0 or 2 children ``` A / \ B C / \ D E ``` 3. Perfect Binary Tree - All levels completely filled ``` A / \ B C / \ / \ D E F G ``` 4. Balanced Binary Tree - Height of left and right subtrees differ by at most one ``` A / \ B C / \ / \ D E F G / H ``` --- ## Binary Tree Representation 1. Array representation: - For a node at index i: - Left child: 2i + 1 - Right child: 2i + 2 - Parent: (i - 1) / 2 (integer division) 2. Linked representation: ```java class Node { int data; Node left; Node right; public Node(int data) { this.data = data; left = right = null; } } ``` ~.~ --- ## Binary Tree Operations 1. Insertion: Add new node 2. Deletion: Remove node 3. Traversal: Visit all nodes 4. Search: Find specific node --- ## Binary Tree Implementation ``` CEO(A) / \ VP(B) VP(C) / \ \ MGR(D) MGR(E) MGR(F) ``` ~.~ --- ## Binary Tree Traversals - **Preorder Traversal**: Root, Left, Right - **Inorder Traversal**: Left, Root, Right - **Postorder Traversal**: Left, Right, Root - **Level Order Traversal**: Level by level from top to bottom ```java // Recursive Inorder traversal void inOrder(Node node) { if (node == null) return; inOrder(node.left); // Traverse left System.out.print(node.value + " "); // Process node inOrder(node.right); // Traverse right } ```  --- ## Common Applications of Binary Trees 1. [Expression trees](https://en.wikipedia.org/wiki/Binary_expression_tree) in compilers 2. [Huffman coding trees in data compression](https://www.youtube.com/watch?v=21_bJLB7gyU&t=68s) 3. **Binary Search Trees (BST) for efficient searching and sorting** 4. Priority Queues and Heaps 5. [Decision trees in machine learning](https://youtu.be/JcI5E2Ng6r4) --- ## Introduction to Heap Data Structure - A binary tree with two special properties: 1. **Structure Property**: Complete binary tree 2. **Heap Property**: - **Max Heap**: Parent key ≥ children keys - **Min Heap**: Parent key ≤ children keys  --- ## Max Heap vs Min Heap | Max Heap | Min Heap | |----------|----------| | Root contains maximum value | Root contains minimum value | | For any node N, value(parent(N)) ≥ value(N) | For any node N, value(parent(N)) ≤ value(N) | --- ## Heap Representation - Typically implemented as an array - For node at index i: - Parent: (i-1)/2 - Left child: 2*i+1 - Right child: 2*i+2 --- ## Heaps: Key Operations (Conceptual) 1. **Insert**: Add new element and restore heap property 2. **Extract**: Remove root element and restore heap property 3. **Heapify**: Convert an array into a valid heap *Detailed implementation will be covered next week* --- ## Introduction to Priority Queues - Abstract data type similar to queues - Each element has a "priority" - Higher priority elements are served before lower priority elements - Operations: insert, delete, peek, isEmpty --- ## Heaps for Priority Queues - Natural implementation for priority queues - Efficient operations: - Insert: O(log n) - Extract maximum/minimum: O(log n) - Peek maximum/minimum: O(1) | Priority Queue Operation | Corresponding Heap Operation | |--------------------------|------------------------------| | Insert with priority | Insert into heap | | Get highest priority item | Peek at root | | Remove highest priority item | Extract root | --- ## Applications of Heaps and Priority Queues - Dijkstra's shortest path algorithm - Prim's minimum spanning tree algorithm - Huffman coding (data compression) - Task scheduling in operating systems - Event-driven simulation - Media streaming --- ## Knowledge Check ### https://quiz.codewithme.com/ ---
